Bonnell 805 RX

The 805 RX

Epic control. Amplified. The 805 RX packs 56 horsepower into a 218 lb chassis. That's serious e-moto power with the agility of a bike that moves with you, not against you. A forged aluminum frame, Sirris A-Kit suspension developed specifically for this bike, and a swappable battery you can hot-swap in about 30 seconds make it as capable on technical terrain as it is fast in the open.

Key specs

• Peak power: 56 hp (42 kW)
• Rear wheel torque: 594 lb-ft (805 Nm)
• Top speed: 80+ mph
• Weight: 218 lb (99 kg)
• Battery: swappable 3.9 kWh Core standard; 4.7 kWh Race pack coming later
• Charging: 1500W charger included, about 2 hours to full; optional 2500W fast charger, under an hour on 220V
• Seat height: 35 in (895 mm) · Wheelbase: 53 in (1,346 mm)

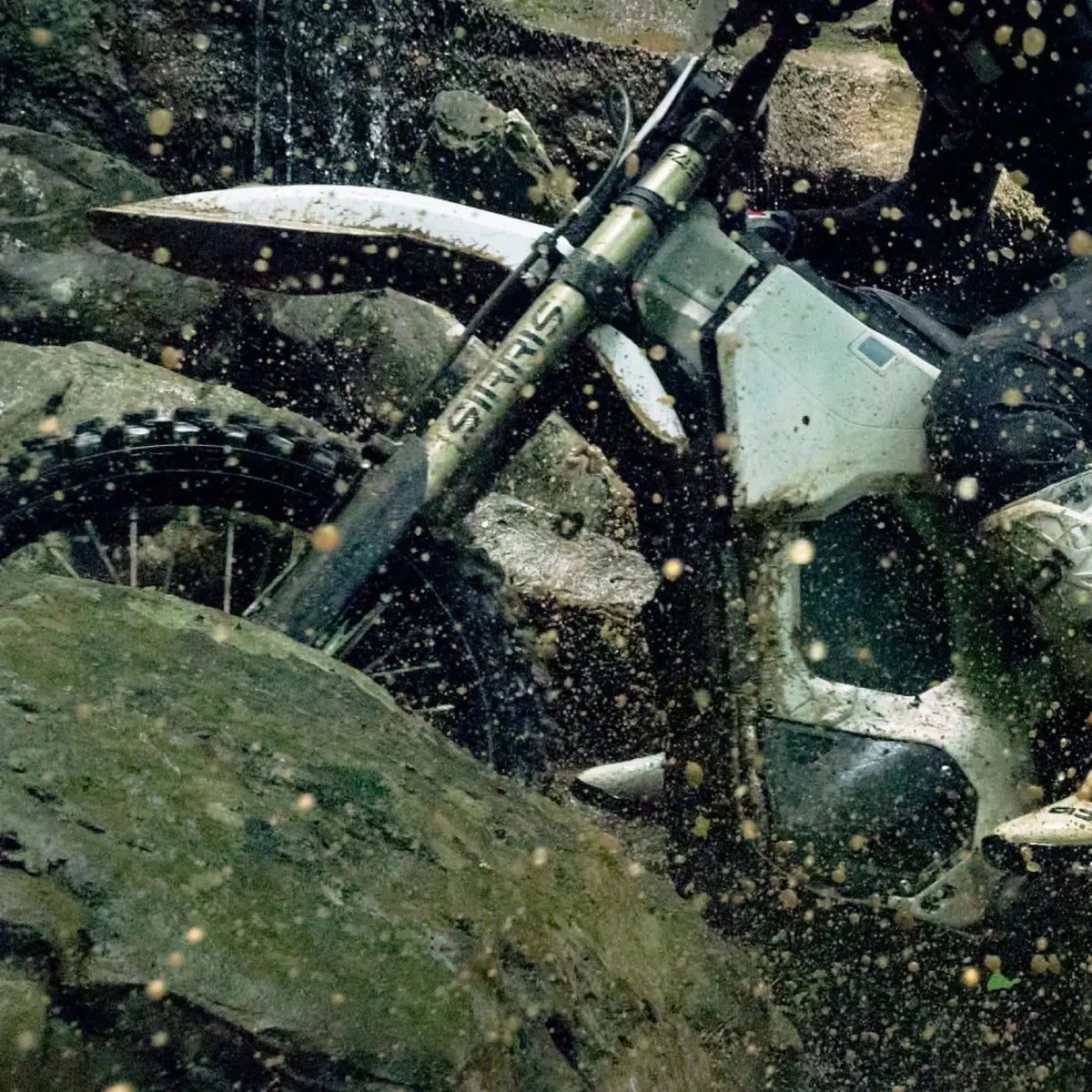

• Suspension: Sirris A-Kit closed-cartridge fork and matching shock, 9.6 in (245 mm) travel, adjustable compression, rebound and preload
• Wheels and tires: 21 in front / 18 in rear, 80/100-21 and 100/90-18

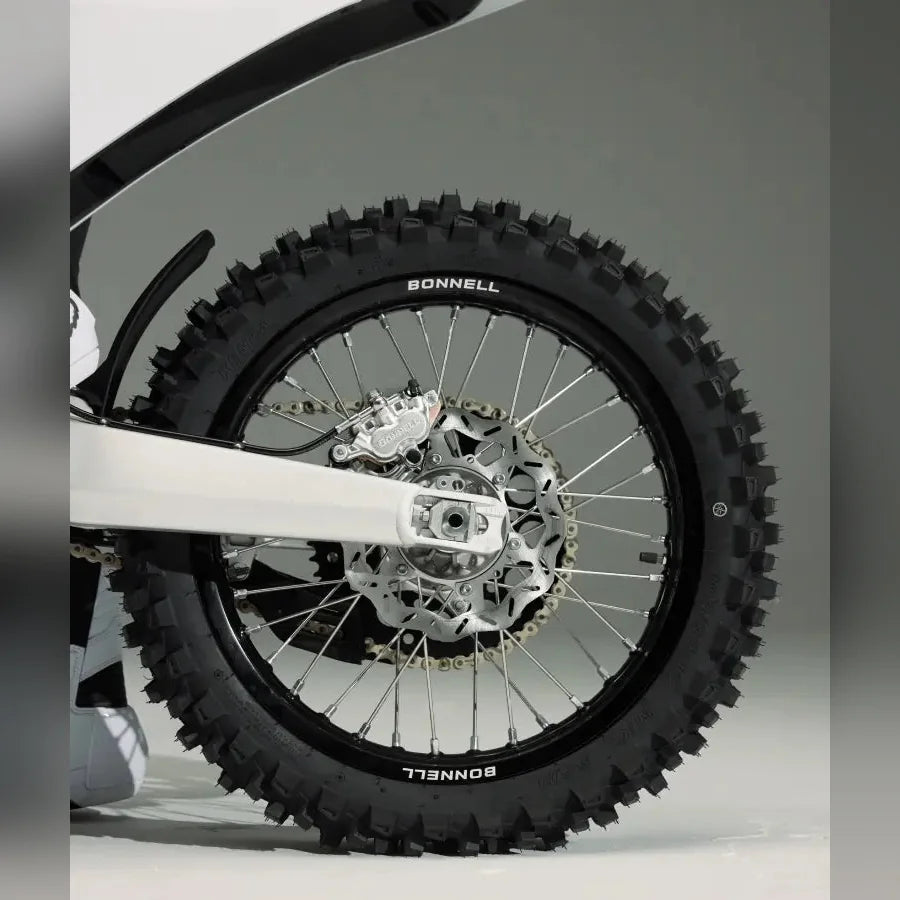

• Brakes: Bonnell forged dual-piston calipers, 240 mm front / 220 mm rear rotors
• Drive: belt drive standard, optional 520 chain kit
• Ride modes: 5 fully customizable modes plus reverse, traction control, wheel lift assist, walk mode, hill hold and parental lock

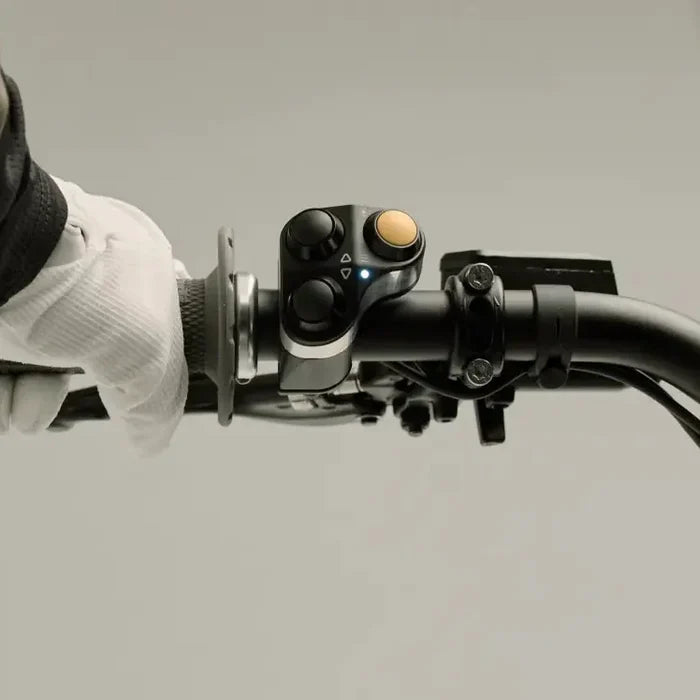

• Display: Pulse Control System with Precision, Performance and Race layouts, lap timer, motor and battery temps
• Tuning: full power, torque, throttle and regen tuning from the Bonnell e-Moto app, no subscription
• Frame: forged aluminum main frame with forged, hydroformed swingarm and removable subframe
• In the box: workshop toolkit in a hard case, torque wrench included
